Why Patriot SpeedCo EGTS are the Best in Motor Sports Today.

•High Definition, Fast & Accurate



Patriot EGTS are proven to be the quickest responding exhaust gas temperature sensors in motorsports. On and off the track these high speed sensors give more data and more closely represent the temperature of the combustion process.

This gives you or your tuner more information to help maximum power and performance safely.

Expect to see more data and higher maximum temperature readings by 150° - 300°F.

Patriot EGTS are currently on numerous engine dynos, greatly improving tuning decisions. Having them onboard your race car will complete the circle of data for the tuner.



•Consistent Sensor Manufacturing Processes



Patriot EGTS are made with the most up to date manufacturing process, on state of the art equipment. All of our sensors are produced on custom fixtures to ensure consistency and reliability.

Patriot EGTS go through a 5 station quality control process where we test the heat up and cool down response time and the durability of the sensors.



•Noise Shielding



Patriot EGTS use shielded black type K thermocouple wire. This helps prevent electromagnetic interference and noisy data. The sensors have an internal ground for the shield drain wire which means no extra wire connections for you.



•Easy To Install

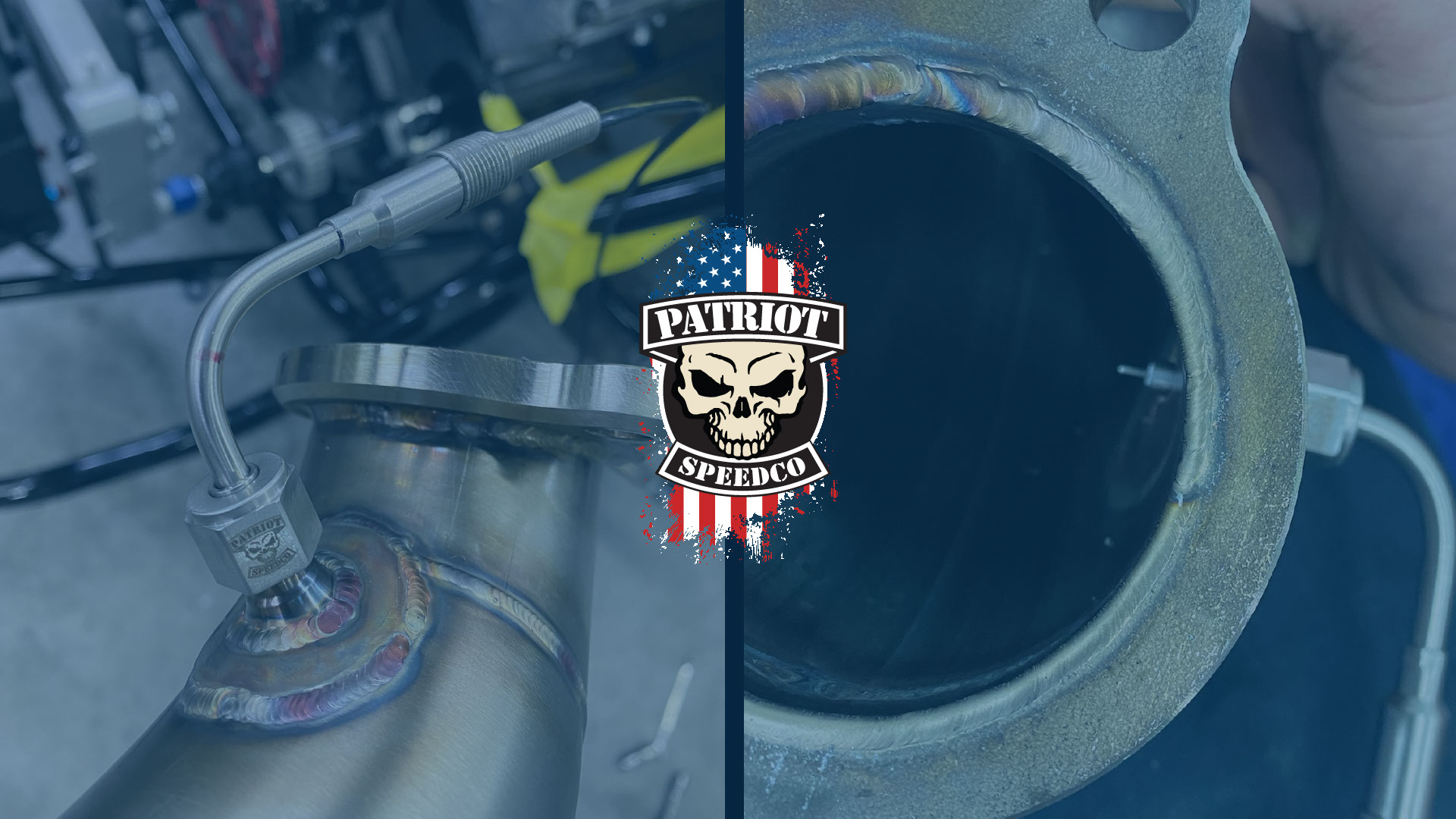

Patriot EGTS are very easy to install. No special calibration needed and sensors will work with any brand ECU or data logger. Designed to fit in 1/4” weld bungs. To maximize the benefits and speed of the Patriot EGTS close attention needs to be paid to the installation depth of the sensors.

Sensors need to be inline to the airflow of the exhaust and need to remain within 15° of the air flow direction. Once sensors have been run, it is important that they stay on the same side of the engine and the air flow hits the sensors from the same direction. The life span of the sensor will be dramatically shortened if subjected to airflow outside of these specifications.



•Durable



Patriot EGTS have been tested across all types of racing engines. They have proven to give fast reliable data for well over 50 runs at over 3000hp. Lower horse power levels will see longer sensor life. Rich or lean conditions do not damage the sensors.



•Affordable



Patriot EGTS cost you less by maximizing the data you get from each run or dyno pull. Low cost sensors can not give you the information needed to make tuning decisions because they are too slow and the events you are trying to adjust have already happened.

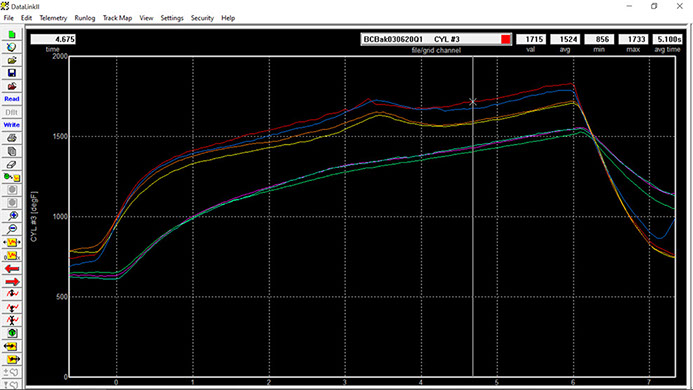

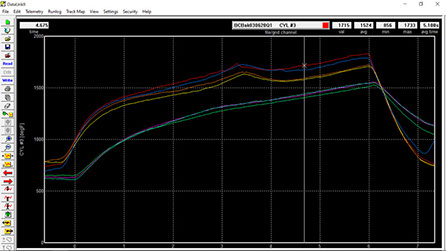

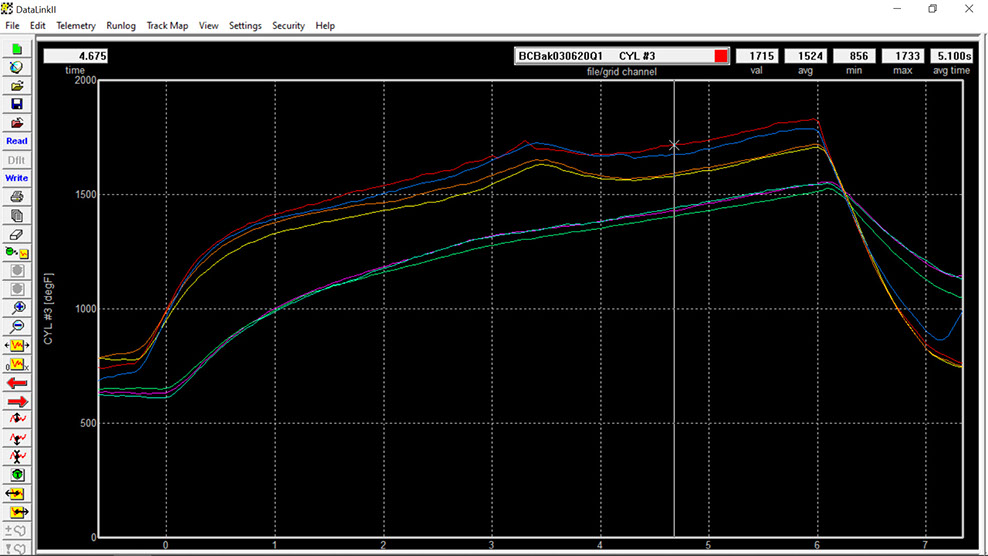

•High Definition



Patriot EGTS have an extremely fast response rate which leads to a higher definition temperature graph. This data you have been missing and makes it easier to identify rpm ranges or areas of the race track that you can improve your fuel curve and timing graph.
